YAMAHA RTX1210, SWX2200, RTX1100で静的ルーティング

どうも!LANケーブル職人の優です。



今回は前回のRTX1210のネットワークに新たにRTX1100ルータをドッキングして静的ルーティングしてみようと思います。

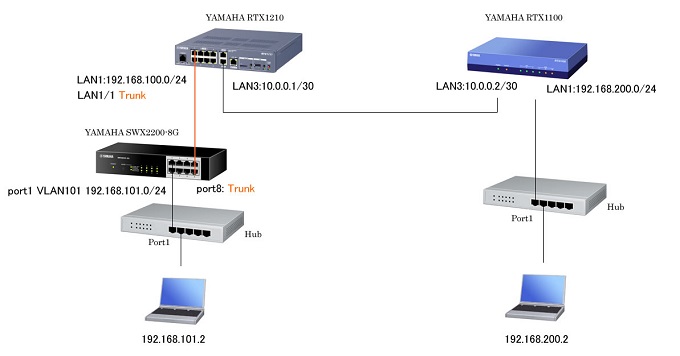

構成図

上記で設定していきます。あれ、あれれ、、とっても難しそうですね。

でも安心して下さい、数行で実現できてしまいます。





早速ルータに設定してみよ~!

RTX1210側

# ip route 192.168.200.0/24 gateway 10.0.0.2
# ip lan3 address 10.0.0.1/30

こんなもんですね。



ip route 宛先アドレス gateway ゲートウェイIP

これがわかれば、難しいことなんて何にもなーい。



RTX1100側

ip route default gateway 10.0.0.1
ip lan1 address 192.168.200.1/24
ip lan3 address 10.0.0.2/30
dhcp service server
dhcp scope 1 192.168.200.2-192.168.200.191/24
dns private address spoof on

これだけでいいのかな…?そう思うような少なさ。

そうなんです、ルータを新たに追加してっていうとテクニカルっぽいですが、静的ルーティングさせるのは簡単なんですね!ルータの追加なんて怖くない。



ここポイント!

ip route default gateway ゲートウェイIP

RTX1100ルータにとってのゲートウェイはRTX1210のLAN3ポートになります。











疎通確認 Pingしてみよう

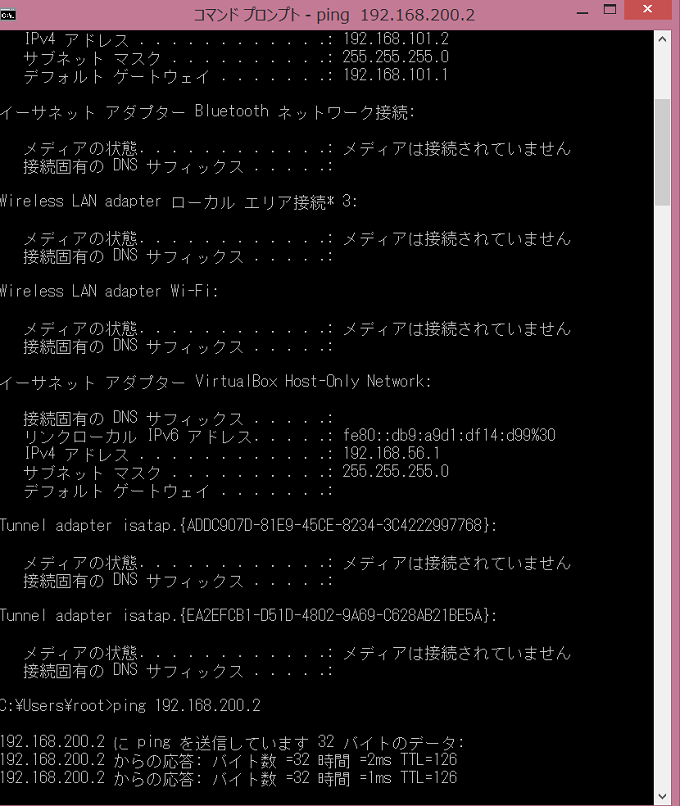

192.168.101.2のVLAN1側のクライアントからPingで192.168.200.2のクライアントに疎通が取れたことがわかります。





実は、勉強会用の設定はもっと簡単。

ip lan1 address 192.168.10.1/24
dhcp service server
dhcp scope 1 192.168.10.2-192.168.10.191/24

THIS WAY.

もっとコマンドを打ちたかったですか。がっかりさせて、ごめんなさい。勉強会というのも、弊社ではゆるいハッキング大会やAD勉強会など定期的にカンファレンスを行っていますが、その時に行うルータの設定は3行だけなんです。





お疲れ様です。





コンフィグレーション

RTX1210



console character ja.utf8
ip route default gateway dhcp lan2
ip route 172.16.0.0/24 gateway 10.0.0.2
ip route 192.168.200.0/24 gateway 10.0.0.2
ip keepalive 1 icmp-echo 10 5 dhcp lan2
ip lan1 address 192.168.100.1/24
switch control use lan1 on terminal=on
vlan lan1/1 802.1q vid=101 name=VLAN101
ip lan1/1 address 192.168.101.1/24
ip lan1/1 secure filter in 600001 600002 600003 600004 600005 600042
vlan lan1/2 802.1q vid=102 name=VLAN102
ip lan1/2 address 192.168.102.1/24
ip lan1/2 secure filter in 600007 600008 600009 600010 600011 600042
vlan lan1/3 802.1q vid=103 name=VLAN103
ip lan1/3 address 192.168.103.1/24
ip lan1/3 secure filter in 600012 600013 600014 600015 600016 600017 600042
vlan lan1/4 802.1q vid=104 name=VLAN104
ip lan1/4 address 192.168.104.1/24
ip lan1/4 secure filter in 600018 600019 600020 600021 600022 600023 600042
vlan lan1/5 802.1q vid=105 name=VLAN105
ip lan1/5 address 192.168.105.1/24
ip lan1/5 secure filter in 600024 600025 600026 600027 600028 600029 600042
vlan lan1/6 802.1q vid=106 name=VLAN106
ip lan1/6 address 192.168.106.1/24
ip lan1/6 secure filter in 600030 600031 600032 600033 600034 600035 600042
vlan lan1/7 802.1q vid=107 name=VLAN107
ip lan1/7 address 192.168.107.1/24
ip lan1/7 secure filter in 600036 600037 600038 600039 600040 600041 600042
description lan2 NURO_LAN2
ip lan2 address dhcp
ip lan2 secure filter in 101003 101020 101021 101022 101023 101024 101025 101030 101032
ip lan2 secure filter out 101013 101020 101021 101022 101023 101024 101025 101026 101027 101099 dynamic 101080 101081 101082 101083 101084 101085 101098 101099
ip lan2 nat descriptor 200
ip lan3 address 10.0.0.1/30
ip filter 101000 reject 10.0.0.0/8 * * * *
ip filter 101001 reject 172.16.0.0/12 * * * *
ip filter 101002 reject 192.168.0.0/16 * * * *
ip filter 101003 reject 192.168.100.0/24 * * * *
ip filter 101010 reject * 10.0.0.0/8 * * *
ip filter 101011 reject * 172.16.0.0/12 * * *
ip filter 101012 reject * 192.168.0.0/16 * * *
ip filter 101013 reject * 192.168.100.0/24 * * *
ip filter 101020 reject * * udp,tcp 135 *
ip filter 101021 reject * * udp,tcp * 135
ip filter 101022 reject * * udp,tcp netbios_ns-netbios_ssn *
ip filter 101023 reject * * udp,tcp * netbios_ns-netbios_ssn
ip filter 101024 reject * * udp,tcp 445 *
ip filter 101025 reject * * udp,tcp * 445
ip filter 101026 restrict * * tcpfin * www,21,nntp
ip filter 101027 restrict * * tcprst * www,21,nntp
ip filter 101030 pass * 192.168.100.0/24 icmp * *
ip filter 101031 pass * 192.168.100.0/24 established * *
ip filter 101032 pass * 192.168.100.0/24 tcp * ident
ip filter 101033 pass * 192.168.100.0/24 tcp ftpdata *
ip filter 101034 pass * 192.168.100.0/24 tcp,udp * domain
ip filter 101035 pass * 192.168.100.0/24 udp domain *
ip filter 101036 pass * 192.168.100.0/24 udp * ntp
ip filter 101037 pass * 192.168.100.0/24 udp ntp *
ip filter 101099 pass * * * * *
ip filter 600000 reject 192.168.101.0/24 192.168.102.0/24
ip filter 600001 reject 192.168.101.0/24 192.168.103.0/24
ip filter 600002 reject 192.168.101.0/24 192.168.104.0/24
ip filter 600003 reject 192.168.101.0/24 192.168.105.0/24
ip filter 600004 reject 192.168.101.0/24 192.168.106.0/24
ip filter 600005 reject 192.168.101.0/24 192.168.107.0/24
ip filter 600006 reject 192.168.102.0/24 192.168.101.0/24
ip filter 600007 reject 192.168.102.0/24 192.168.103.0/24
ip filter 600008 reject 192.168.102.0/24 192.168.104.0/24
ip filter 600009 reject 192.168.102.0/24 192.168.105.0/24
ip filter 600010 reject 192.168.102.0/24 192.168.106.0/24
ip filter 600011 reject 192.168.102.0/24 192.168.107.0/24
ip filter 600012 reject 192.168.103.0/24 192.168.101.0/24
ip filter 600013 reject 192.168.103.0/24 192.168.102.0/24
ip filter 600014 reject 192.168.103.0/24 192.168.104.0/24
ip filter 600015 reject 192.168.103.0/24 192.168.105.0/24
ip filter 600016 reject 192.168.103.0/24 192.168.106.0/24
ip filter 600017 reject 192.168.103.0/24 192.168.107.0/24
ip filter 600018 reject 192.168.104.0/24 192.168.101.0/24
ip filter 600019 reject 192.168.104.0/24 192.168.102.0/24
ip filter 600020 reject 192.168.104.0/24 192.168.103.0/24
ip filter 600021 reject 192.168.104.0/24 192.168.105.0/24
ip filter 600022 reject 192.168.104.0/24 192.168.106.0/24
ip filter 600023 reject 192.168.104.0/24 192.168.107.0/24
ip filter 600024 reject 192.168.105.0/24 192.168.101.0/24
ip filter 600025 reject 192.168.105.0/24 192.168.102.0/24
ip filter 600026 reject 192.168.105.0/24 192.168.103.0/24
ip filter 600027 reject 192.168.105.0/24 192.168.104.0/24
ip filter 600028 reject 192.168.105.0/24 192.168.106.0/24
ip filter 600029 reject 192.168.105.0/24 192.168.107.0/24
ip filter 600030 reject 192.168.106.0/24 192.168.101.0/24
ip filter 600031 reject 192.168.106.0/24 192.168.102.0/24
ip filter 600032 reject 192.168.106.0/24 192.168.103.0/24
ip filter 600033 reject 192.168.106.0/24 192.168.104.0/24
ip filter 600034 reject 192.168.106.0/24 192.168.105.0/24
ip filter 600035 reject 192.168.106.0/24 192.168.107.0/24
ip filter 600036 reject 192.168.107.0/24 192.168.101.0/24
ip filter 600037 reject 192.168.107.0/24 192.168.102.0/24
ip filter 600038 reject 192.168.107.0/24 192.168.103.0/24
ip filter 600039 reject 192.168.107.0/24 192.168.104.0/24
ip filter 600040 reject 192.168.107.0/24 192.168.105.0/24
ip filter 600041 reject 192.168.107.0/24 192.168.106.0/24
ip filter 600042 pass * *
ip filter dynamic 101080 * * ftp
ip filter dynamic 101081 * * domain
ip filter dynamic 101082 * * www
ip filter dynamic 101083 * * smtp
ip filter dynamic 101084 * * pop3
ip filter dynamic 101085 * * submission
ip filter dynamic 101098 * * tcp
ip filter dynamic 101099 * * udp
nat descriptor type 200 masquerade
nat descriptor address outer 200 primary
dhcp service server
dhcp server rfc2131 compliant except remain-silent
dhcp scope 1 192.168.100.2-192.168.100.191/24
dhcp scope 10101 192.168.101.2-192.168.101.191/24
dhcp scope 10102 192.168.102.2-192.168.102.191/24
dhcp scope 10103 192.168.103.2-192.168.103.191/24
dhcp scope 10104 192.168.104.2-192.168.104.191/24
dhcp scope 10105 192.168.105.2-192.168.105.191/24
dhcp scope 10106 192.168.106.2-192.168.106.191/24
dhcp scope 10107 192.168.107.2-192.168.107.191/24
dhcp client hostname lan2 primary NURO_DHCP
dns host lan1 lan1/1 lan1/2 lan1/3 lan1/4 lan1/5 lan1/6 lan1/7
dns server dhcp lan2
dns server select 500201 dhcp lan2 any .
dns private address spoof on
schedule at 1 */* 00:00:00 * ntpdate ntp.nict.jp syslog
httpd host lan1
dashboard accumulate traffic on
switch select 00:xx:xx:xx:xx:30
 switch control function set vlan-port-mode 8 hybrid
 switch control function set vlan-access 1 101
 switch control function set vlan-access 2 102
 switch control function set vlan-access 3 103
 switch control function set vlan-access 4 104
 switch control function set vlan-access 5 105
 switch control function set vlan-access 6 106
 switch control function set vlan-access 7 107
 switch control function set vlan-trunk 8 101 join
 switch control function set vlan-trunk 8 102 join
 switch control function set vlan-trunk 8 103 join
 switch control function set vlan-trunk 8 104 join
 switch control function set vlan-trunk 8 105 join
 switch control function set vlan-trunk 8 106 join
 switch control function set vlan-trunk 8 107 join







RTX1100



console character sjis
ip route default gateway 10.0.0.1
ip lan1 address 192.168.200.1/24
ip lan3 address 10.0.0.2/30
dhcp service server
dhcp scope 1 192.168.200.2-192.168.200.191/24
dns private address spoof on
