社内向けのTerraformハンズオン勉強会用資料として作成

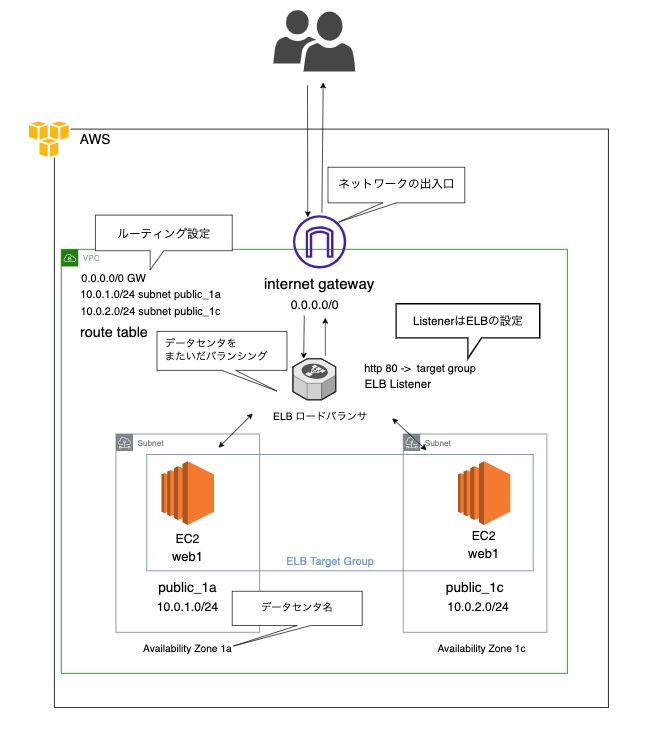

完成するもの

$ sudo easy_install pip
$ sudo pip install awscli

% aws configure --profile hanson-terraform-deployer

AWS Access Key ID [None]: {シークレットキーID}
AWS Secret Access Key [None]: {シークレットキー}
Default region name [None]: ap-northeast-1
Default output format [None]: json

% cat ~/.aws/credentials

[hanson-terraform-deployer]
aws_access_key_id = {シークレットキーID}
aws_secret_access_key = {シークレットキー}

$ brew install tfenv

$ tfenv -v

tfenv 2.2.2

$ tfenv list-remote

1.1.0-beta1
1.1.0-alpha20211029
1.1.0-alpha20211020
1.1.0-alpha20211006
1.1.0-alpha20210922
1.1.0-alpha20210908
1.1.0-alpha20210811
1.1.0-alpha20210728
1.1.0-alpha20210714
1.1.0-alpha20210630
1.1.0-alpha20210616
1.0.11
1.0.10
1.0.9
1.0.8

1.0.11インストール
$ tfenv install 1.0.11

1.0.11を使う
$ tfenv use 1.0.11
Switching default version to v1.0.11
Switching completed

これでMacにTerraformが入りました。

VSCodeの拡張機能をインストール

• Terraform

• TFLint

  $ brew install tflint

AWSコンソールにログイン

コンソール画面にログインできることを確認してください。

Terraformで作ったリソースを確かめることができます！

ハンズオン開始！

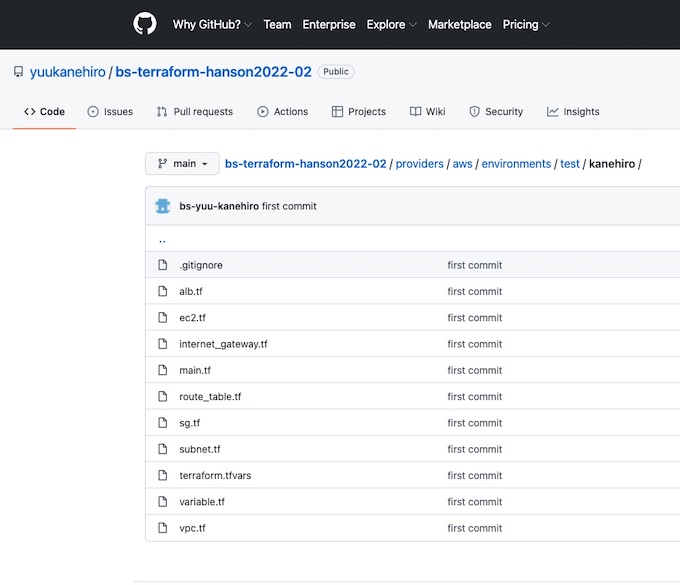

こんなディレクトリ構造になります。

ハンズオン用リポジトリをgit cloneでダウンロードします。

$ git clone https://github.com/yuukanehiro/bs-terraform-hanson2022-02.git

• https://github.com/yuukanehiro/bs-terraform-hanson2022-02

tfstateを管理するS3バケットの作成

ディレクトリを作成して、作成したディレクトリに移動します

$ mkdir -p /providers/aws/environments/test/{あなたの名前}
$ cd /providers/aws/environments/test/{あなたの名前}/

そこがあなたの作業ディレクトリになります。

変数ファイル作成

terraform.tfvars

aws_region             = "ap-northeast-1"
aws_profile            = "hanson-terraform-deployer"
ENV_VALUE_ENVIRONMENT  = "test"
TAG_PROJECT            = "terraform-handson"
TAG_ROLE               = "handon"
TAG_AUTHOR             = "yuu3" # 🔥 自分の名前にしてください 例) tanaka

main.tfファイル作成

terraform {
  required_version = "= 1.1.1"
  backend "s3" {
    bucket = "tfstate-handson-12345678" # S3のバケット。事前に作ってあります。
    region = "ap-northeast-1"
    key     = "{🔥ここに名前を英数入力お願いします}/terraform.tfstate" #　 例) "yuu3/terraform.tfstate"
    profile = "hanson-terraform-deployer" # 🐱 AWS Cliで設定したIAMユーザのプロフィール名
  }
}

variable aws_region {}
variable aws_profile {}
variable ENV_VALUE_ENVIRONMENT {}
variable TAG_PROJECT {}
variable TAG_ROLE {}
variable TAG_AUTHOR {}

provider "aws" {
  region  = var.aws_region
  profile = var.aws_profile
  default_tags {
    tags = {
      env     = var.ENV_VALUE_ENVIRONMENT
      project = var.TAG_PROJECT
      role    = var.TAG_ROLE
      author  = var.TAG_AUTHOR
    }
  }
}

初期化します。

% terraform init

Initializing the backend...

Successfully configured the backend "s3"! Terraform will automatically
use this backend unless the backend configuration changes.

Initializing provider plugins...
- Finding latest version of hashicorp/aws...
- Installing hashicorp/aws v3.74.0...
- Installed hashicorp/aws v3.74.0 (signed by HashiCorp)

Terraform has created a lock file .terraform.lock.hcl to record the provider
selections it made above. Include this file in your version control repository
so that Terraform can guarantee to make the same selections by default when
you run "terraform init" in the future.

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

resource "aws_vpc" "main" {
  cidr_block = "10.0.0.0/16"
}

terraform planによる実行計画の確認

% terraform plan

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the
following symbols:
  + create

Terraform will perform the following actions:

  # aws_vpc.main will be created
  + resource "aws_vpc" "main" {
      + arn                                  = (known after apply)
      + cidr_block                           = "10.0.0.0/16"
      + default_network_acl_id               = (known after apply)
      + default_route_table_id               = (known after apply)
      + default_security_group_id            = (known after apply)
      + dhcp_options_id                      = (known after apply)
      + enable_classiclink                   = (known after apply)
      + enable_classiclink_dns_support       = (known after apply)
      + enable_dns_hostnames                 = (known after apply)
      + enable_dns_support                   = true
      + id                                   = (known after apply)
      + instance_tenancy                     = "default"
      + ipv6_association_id                  = (known after apply)
      + ipv6_cidr_block                      = (known after apply)
      + ipv6_cidr_block_network_border_group = (known after apply)
      + main_route_table_id                  = (known after apply)
      + owner_id                             = (known after apply)
      + tags_all                             = {
          + "author"  = "kanehiro"
          + "env"     = "test"
          + "project" = "terraform-handson"
          + "role"    = "handon"
        }
    }

Plan: 1 to add, 0 to change, 0 to destroy.

───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────

Note: You didn't use the -out option to save this plan, so Terraform can't guarantee to take exactly these actions if you run
"terraform apply" now.

% terraform apply

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the
following symbols:
  + create

Terraform will perform the following actions:

  # aws_vpc.main will be created
  + resource "aws_vpc" "main" {
      + arn                                  = (known after apply)
      + cidr_block                           = "10.0.0.0/16"
      + default_network_acl_id               = (known after apply)
      + default_route_table_id               = (known after apply)
      + default_security_group_id            = (known after apply)
      + dhcp_options_id                      = (known after apply)
      + enable_classiclink                   = (known after apply)
      + enable_classiclink_dns_support       = (known after apply)
      + enable_dns_hostnames                 = (known after apply)
      + enable_dns_support                   = true
      + id                                   = (known after apply)
      + instance_tenancy                     = "default"
      + ipv6_association_id                  = (known after apply)
      + ipv6_cidr_block                      = (known after apply)
      + ipv6_cidr_block_network_border_group = (known after apply)
      + main_route_table_id                  = (known after apply)
      + owner_id                             = (known after apply)
      + tags_all                             = {
          + "author"  = "kanehiro"
          + "env"     = "test"
          + "project" = "terraform-handson"
          + "role"    = "handon"
        }
    }

Plan: 1 to add, 0 to change, 0 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes 🔥 yesと入力してEnterしてください

  aws_vpc.main: Creating...
aws_vpc.main: Creation complete after 2s [id=vpc-08624fd5aa20406d0]

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

# Subnet
# https://www.terraform.io/docs/providers/aws/r/subnet.html
resource "aws_subnet" "public_1a" {
  # 先程作成したVPCを参照し、そのVPC内にSubnetを立てる
  vpc_id = aws_vpc.main.id # 🐱 先ほど作ったVPCのIDを動的に指定しています。

  # Subnetを作成するAZ
  availability_zone = "ap-northeast-1a"

  cidr_block        = "10.0.1.0/24"

  tags = {
    Name = "handson-public-1a"
  }
  depends_on = [aws_vpc.main] # 🐱 依存関係を指定しています。vpcがある前提であることを明示しています。同時にリソースを作る際に重要
}

 % terraform plan

aws_vpc.main: Refreshing state... [id=vpc-08624fd5aa20406d0]

Note: Objects have changed outside of Terraform

Terraform detected the following changes made outside of Terraform since the last "terraform apply":

  # aws_vpc.main has changed
  ~ resource "aws_vpc" "main" {
        id                               = "vpc-08624fd5aa20406d0"
      + tags                             = {}
        # (16 unchanged attributes hidden)
    }


Unless you have made equivalent changes to your configuration, or ignored the relevant attributes using ignore_changes, the following plan may include actions to
undo or respond to these changes.

───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # aws_subnet.public_1a will be created
  + resource "aws_subnet" "public_1a" {
      + arn                                            = (known after apply)
      + assign_ipv6_address_on_creation                = false
      + availability_zone                              = "ap-northeast-1a"
      + availability_zone_id                           = (known after apply)
      + cidr_block                                     = "10.0.1.0/24"
      + enable_dns64                                   = false
      + enable_resource_name_dns_a_record_on_launch    = false
      + enable_resource_name_dns_aaaa_record_on_launch = false
      + id                                             = (known after apply)
      + ipv6_cidr_block_association_id                 = (known after apply)
      + ipv6_native                                    = false
      + map_public_ip_on_launch                        = false
      + owner_id                                       = (known after apply)
      + private_dns_hostname_type_on_launch            = (known after apply)
      + tags                                           = {
          + "Name" = "handson-public-1a"
        }
      + tags_all                                       = {
          + "Name"    = "handson-public-1a"
          + "author"  = "kanehiro"
          + "env"     = "test"
          + "project" = "terraform-handson"
          + "role"    = "handon"
        }
      + vpc_id                                         = "vpc-08624fd5aa20406d0"
    }

Plan: 1 to add, 0 to change, 0 to destroy.

───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────

Note: You didn't use the -out option to save this plan, so Terraform can't guarantee to take exactly these actions if you run "terraform apply" now.

% terraform apply
aws_vpc.main: Refreshing state... [id=vpc-08624fd5aa20406d0]

Note: Objects have changed outside of Terraform

Terraform detected the following changes made outside of Terraform since the last "terraform apply":

  # aws_vpc.main has changed
  ~ resource "aws_vpc" "main" {
        id                               = "vpc-08624fd5aa20406d0"
      + tags                             = {}
        # (16 unchanged attributes hidden)
    }


Unless you have made equivalent changes to your configuration, or ignored the relevant attributes using ignore_changes, the following plan may include actions to
undo or respond to these changes.

───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # aws_subnet.public_1a will be created
  + resource "aws_subnet" "public_1a" {
      + arn                                            = (known after apply)
      + assign_ipv6_address_on_creation                = false
      + availability_zone                              = "ap-northeast-1a"
      + availability_zone_id                           = (known after apply)
      + cidr_block                                     = "10.0.1.0/24"
      + enable_dns64                                   = false
      + enable_resource_name_dns_a_record_on_launch    = false
      + enable_resource_name_dns_aaaa_record_on_launch = false
      + id                                             = (known after apply)
      + ipv6_cidr_block_association_id                 = (known after apply)
      + ipv6_native                                    = false
      + map_public_ip_on_launch                        = false
      + owner_id                                       = (known after apply)
      + private_dns_hostname_type_on_launch            = (known after apply)
      + tags                                           = {
          + "Name" = "handson-public-1a"
        }
      + tags_all                                       = {
          + "Name"    = "handson-public-1a"
          + "author"  = "kanehiro"
          + "env"     = "test"
          + "project" = "terraform-handson"
          + "role"    = "handon"
        }
      + vpc_id                                         = "vpc-08624fd5aa20406d0"
    }

Plan: 1 to add, 0 to change, 0 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes 🔥 yesと入力

aws_subnet.public_1a: Creating...
aws_subnet.public_1a: Creation complete after 1s [id=subnet-04770c2b153ca7738]

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

# Subnet
# https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/subnet
resource "aws_subnet" "public_1a" {
  # 先程作成したVPCを参照し、そのVPC内にSubnetを立てる
  vpc_id = aws_vpc.main.id # 🐱  先ほど作ったVPCのIDを動的に指定しています

  # Subnetを作成するAZ
  availability_zone = "ap-northeast-1a"

  cidr_block        = "10.0.1.0/24"

  tags = {
    Name = "handson-public-1a"
  }
  depends_on = [aws_vpc.main] # 🐱  依存関係を指定しています。vpcがある前提であることを明示しています。同時にリソースを作る際に重要
}


# 🔥🔥🔥 下記を追加

resource "aws_subnet" "public_1c" {
  vpc_id = aws_vpc.main.id

  availability_zone = "ap-northeast-1c"

  cidr_block        = "10.0.2.0/24"

  tags = {
    Name = "handson-public-1c"
  }
}

$ terraform plan
$ terraform apply

# Internet Gateway
# https://www.terraform.io/docs/providers/aws/r/internet_gateway.html
resource "aws_internet_gateway" "main" {
  vpc_id = aws_vpc.main.id
  tags = {
    Name = "handson-"
  }
}

$ terraform plan
$ terraform apply

route_table.tf

# Route Table
# https://www.terraform.io/docs/providers/aws/r/route_table.html
resource "aws_route_table" "public" {
  vpc_id = aws_vpc.main.id

  tags = {
    Name = "handson-public"
  }
}

# Route
# https://www.terraform.io/docs/providers/aws/r/route.html
resource "aws_route" "public" {
  destination_cidr_block = "0.0.0.0/0"
  route_table_id         = aws_route_table.public.id
  gateway_id             = aws_internet_gateway.main.id
}

# Association
# https://www.terraform.io/docs/providers/aws/r/route_table_association.html
resource "aws_route_table_association" "public_1a" {
  subnet_id      = aws_subnet.public_1a.id
  route_table_id = aws_route_table.public.id
  depends_on     = [aws_route_table.public]
}
resource "aws_route_table_association" "public_1c" {
  subnet_id      = aws_subnet.public_1c.id
  route_table_id = aws_route_table.public.id
  depends_on     = [aws_route_table.public]
}

$ terraform plan
$ terraform apply

セキュリティグループを作ろう

sg.tf

# SecurityGroup
# https://www.terraform.io/docs/providers/aws/r/security_group.html
resource "aws_security_group" "http" {
  name        = "handson-alb"
  description = "handson alb"
  vpc_id      = aws_vpc.main.id

  # セキュリティグループ内のリソースからインターネットへのアクセスを許可する
  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }

  tags = {
    Name = "handson-http"
  }
}

# SecurityGroup Rule
# https://www.terraform.io/docs/providers/aws/r/security_group.html
resource "aws_security_group_rule" "http" {
  security_group_id = aws_security_group.http.id

  # セキュリティグループ内のリソースへインターネットからのアクセスを許可する
  type = "ingress"

  from_port = 80
  to_port   = 80
  protocol  = "tcp"

  cidr_blocks = ["0.0.0.0/0"]
}

$ terraform plan
$ terraform apply

EC2を作ろう

variable.tf

variable "ami_id_demo" {
    default = "ami-0acaef956254d73c1" # 事前にWebサーバ(Nginx)のAMI作っておきました
    type = string
}

terraform.tfvars以外にもvariableディレクティブで定義できます。

ec2.tf

resource "aws_instance" "web1" {
    ami                    = var.ami_id_demo
    instance_type          = "t2.nano"
    monitoring             = true
    vpc_security_group_ids = [aws_security_group.http.id]
    subnet_id              = aws_subnet.public_1a.id
}

resource "aws_instance" "web2" {
    ami                    = var.ami_id_demo
    instance_type          = "t2.nano"
    monitoring             = true
    vpc_security_group_ids = [aws_security_group.http.id]
    subnet_id              = aws_subnet.public_1c.id
}

$ terraform plan
$ terraform apply

ALBを作ろう

alb.tf

# ALB
# https://www.terraform.io/docs/providers/aws/d/lb.html
resource "aws_lb" "main" {
  load_balancer_type = "application"
  name               = "alb-${var.TAG_AUTHOR}"

  security_groups = [aws_security_group.http.id]
  subnets = [
    aws_subnet.public_1a.id,
    aws_subnet.public_1c.id
  ]
}

# TargetGroup
resource "aws_lb_target_group" "main" {
  name     = "alb-${var.TAG_AUTHOR}-tg"
  port     = 80
  protocol = "HTTP"
  vpc_id   = aws_vpc.main.id
}

resource "aws_lb_target_group_attachment" "web1" {
  target_group_arn = aws_lb_target_group.main.arn
  target_id        = aws_instance.web1.id
  port             = 80
  depends_on = [aws_instance.web1]
}
resource "aws_lb_target_group_attachment" "web2" {
  target_group_arn = aws_lb_target_group.main.arn
  target_id        = aws_instance.web2.id
  port             = 80
  depends_on = [aws_instance.web2]
}


# Listener
# https://www.terraform.io/docs/providers/aws/r/lb_listener.html
resource "aws_lb_listener" "main" {
  # HTTPでのアクセスを受け付ける
  port              = "80"
  protocol          = "HTTP"

  # ALBのarnを指定します。
  #XXX: arnはAmazon Resource Names の略で、その名の通りリソースを特定するための一意な名前(id)です。
  load_balancer_arn = aws_lb.main.arn

  default_action {
    type             = "forward"
    target_group_arn = aws_lb_target_group.main.arn
  }
  depends_on = [
    aws_lb.main,
    aws_lb_target_group.main
  ]
}

$ terraform plan
$ terraform apply

確認

AWSコンソールからロードバランサーのページに行きます。

説明からDNS名欄でオレンジのリンクをクリックするとコピーされます。

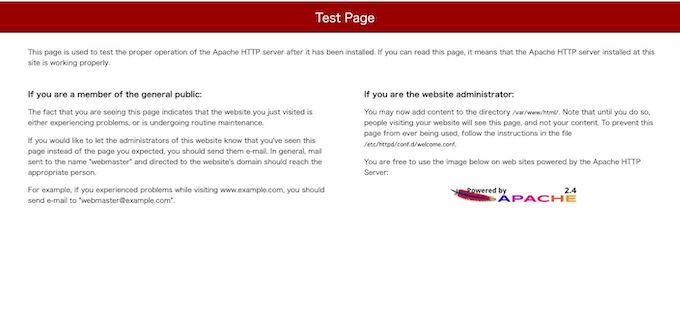

ブラウザのURL欄に貼り付けて、Test Pageが表示されたら成功です！

お疲れ様でした！

最後はお片づけ

えーい、バルス！

$ terraform destroy

// develop, staging, production環境では禁止です。。

参考

• https://y-ohgi.com/introduction-terraform/handson/ecs/

Amazonおすすめ

iPad 9世代 2021年最新作

iPad 9世代出たから買い替え。安いぞ！🐱 初めてならiPad。Kindleを外で見るならiPad mini。ほとんどの人には通常のiPadをおすすめします＞＜
